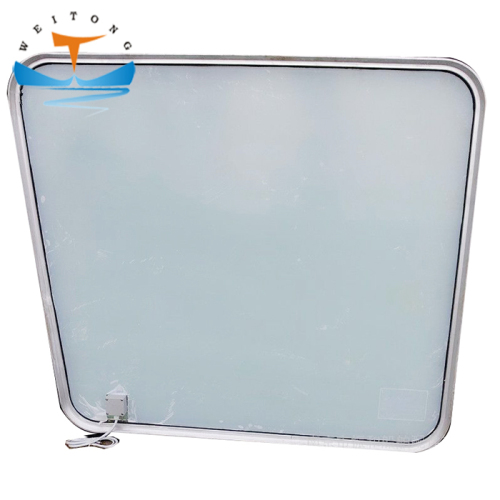

Rectangular Marine Aluminium Windows

Weitong Marine offers kinds of quality Marine Ordinary Bolted Rectangular Steel Aluminum Ship Window at reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description
Rectangular Marine Aluminium Windows
Marine Opening Rectangular window is a kind of ship ordinary rectangular windows used for superstructure above freeboard deck anddeck house, can be made of steel, aluminum and copper. It meets the requirement of ISO3903-1993
Standard: GB/T5746-2001
A60 lever products certified by CCS,ABS,BV,LR,GL etc
Specification:

CATEGORIES

SERIES TYPE GODE NAME NOMINAL SIZE WALL OPENINGS WINDOW SEAT OPEN TYPE
w*h w1*h1 r w2*h2 w3*h3
 Bolt type rectangular window

N







P







H



E









F

1 300*425 352*477 76 348*473 430*555

ILB

IRB

ITB

OLB

ORB

OTB

NOB

2 355*500 407*552 76 403*548 485*630
3 400*560 452*612 76 448*608 530*690
4 450*630 502*682 126 498*678 580*760
5 500*710 552*762 126 548*758 630*840
6 560*800 612*852 126 608*848 690*930
7 900*630 952*882 126 948*678 1030*760
8 1000*710 1052*762 126 1048*758 1130*840
9 1100*800 1152*852 126 1148*848 1230*930
 Welded rectangular window 1 300*425 352*477 76 348*473

ILW

IRW

ITW

OLW

ORW

OTW

NOW

2 355*500 407*552 76 403*548
3 400*560 452*612 76 448*608
4 450*630 502*682 126 498*678
5 500*710 552*762 126 548*758
6 560*800 612*852 126 608*848
7 900*630 952*882 126 948*678
8 1000*710 1052*762 126 1048*758
9 1100*800 1152*852 126 1148*848
